ROCKEX InztaaFrame
HomeSure RockEX INZTAAFRAME
Great ceilings start from within. / A ceiling is only as good as the frame holding it up. HomeSure RockEX metal frame systems are the hidden engineering that makes suspended ceilings possible — a complete ecosystem of sections, channels, angles, and clips, each of them being corrosion resistant and precision engineered from hot dip galvanized cold formed steel, to meet exact standards, built to hold true across every inch and protected against the test of time. Whether it’s a compact apartment or a sprawling commercial space, from primary grids to perimeter edges, every component of HomeSure RockEX InztaaFrame is designed for fast hassle-free installation, lasting rigidity, and zero compromise on finish.

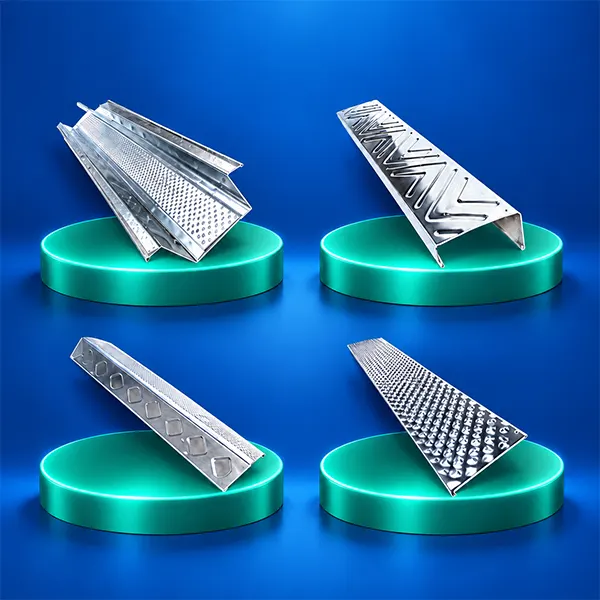

Products
Ceiling Section
Intermediate Channel
Perimeter Channel
Ceiling Angle
5 Star Advantage
- Fast Installation – Frame it Fix It Finish it Faster – Lightweight sections simplify handling, cutting, and fixing.
- Precision Engineered – Millimeter Perfect Every Time – High-tolerance production lines for consistent dimensional accuracy — ensuring true alignment, and zero on-site surprises.
- High Load Bearing Capacity – Engineered to hold Built to perform Optimised profile geometry and gauge thickness give the frame exceptional weight-bearing strength — supporting plasterboard, light fixtures, and services without breaking a sweat.
- Superior Corrosion Resistant – Rain, Humidity, Salt and Air Just Bring it on – Hot-dip galvanized cold-formed steel with 120 gsm galvanisation as per IS 277:2018 helps enhance durability and corrosion resistance in building interiors.
- Anti Slip Technology – Designed for the screw to bite – A precision-knurled surface finish that maximizes screw grip and retention, preventing slippage and keeping boards rock-solid.
Technical Specification
Recommended Grid Arrangement
Technical Specification
| Parameters | Ceiling Section | Heavy Intermediate Channel | Perimeter Section | Ceiling Angle |
| Purpose | Main supporting section to fix gypsum plasterboard | Primary section to support the ceiling section; hang from soffit via ceiling angle & soffit cleat | Fixed at wall periphery to receive ends of ceiling & intermediate sections | Hanger to suspend intermediate channels from RCC slab/soffit |
| Section Configuration | Top × Flange × Web | Top × Flange × Web | Long Leg × Web × Short Leg | Long Leg × Short Leg |
| Dimensions (in mm) | 76 × 20 × 42 | 45 × 15 × 15 | 30 × 22 × 20 | 25 × 10 |
| Base Metal Thickness (in mm) | 0.40 ± 0.02 | 0.60 ± 0.02 | 0.40 ± 0.02 | 0.40 ± 0.02 |
| Standard Length (in mm) | 3660 ± 3 | 3660 ± 3 | 3660 ± 3 | 3660 ± 3 |
| Galvanisation (In gsm) (As per IS 277:2018) | 120 | 120 | 120 | 120 |
| Minimum Yield Strength (in MPa) | 240 | 240 | 240 | 240 |
| Parameter | Specification |
| Material | Hot Dip Galvanized Cold Formed Steel |
| Galvanisation | 120 gsm as per IS 277:2018 |
| Minimum Yield Strength | 240 MPa |
| Dimensional Tolerance | ± 0.50 mm |
| Applicable Standards | IS 277:2018, IS 513 (Part 1):2016, IS 811:1987, IS 801 |
Recommended Grid Arrangement
| Component | Recommended Spacing |
| Hanger Spacing | Maximum 1200 mm |
| Intermediate Channel Spacing | 900 mm to 1200 mm |
| Ceiling Section Spacing (Subject to Loading) | 457 mm |
